Radiometric Density Measurement on Process Piping
- Apr 30
- 3 min read
Radiometric density measurement has become a dependable solution for industries operating under extreme process conditions. When high temperatures, pressure, corrosion, or abrasive media challenge conventional instruments, non-contact measurement provides a stable and proven alternative. Drawing on decades of field experience, VEGA supports these demanding applications with radiometric systems designed specifically for reliable density measurement on process piping.
The measurement principleRadiometric density measurement starts with a sealed gamma source that emits radiation through the pipe wall and process medium. A detector mounted on the opposite side measures how much radiation reaches it. As material density increases, more radiation is absorbed and less reaches the detector.
This predictable relationship – described by the Lambert-Beer law – allows the system to convert detector signals into precise and repeatable density values. Because the measurement is entirely external and non-contact, it remains unaffected by pressure, temperature, viscosity, or aggressive chemistry.

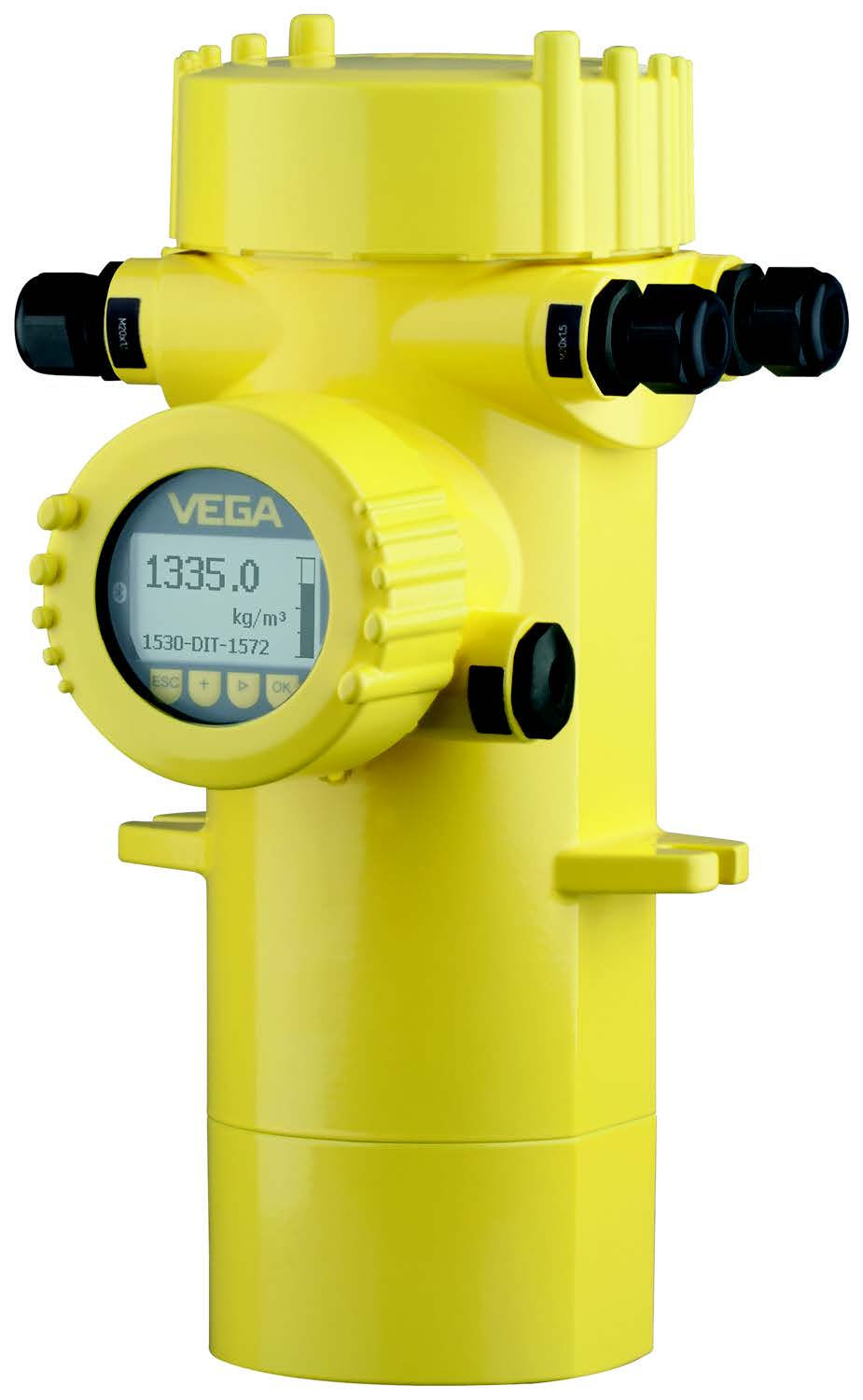

Compact detectors such as VEGA’s MINITRAC 31 and MINITRAC 32 are designed specifically for pipe mounting. Their slim form factor and rugged construction make installation practical even in tight or difficult-to-access process areas.
Measuring solution-phase densityRadiometric gauges are particularly effective for solution-phase applications where materials are fully dissolved and evenly distributed. Acid concentration monitoring, brine density control, and solvent formulation are typical examples.
In these homogeneous systems, attenuation remains consistent across the pipe cross section, producing smooth and continuous readings that correlate directly with concentration.
Radiometric detectors like those in the PROTRAC family are widely used in these applications, delivering the long-term stability required for reliable closed-loop control in chemical and refining processes.
Because no components come into contact with the medium, there is no risk of coating, plugging, or material incompatibility. This simplifies maintenance planning and improves operational continuity.
Tracking entrained solids and slurriesApplications involving suspended solids can make reliable measurement difficult. Slurries containing mineral ores, catalyst fines, or pulp fibers can vary depending on flow velocity and pipe orientation. However, radiometric measurement captures the combined density of liquid and solids along the radiation path.
With proper calibration and installation, radiometric detectors provide consistent performance in abrasive or high-solids environments without exposure to the process medium. Operators can monitor solids loading in real time and respond quickly to process deviations.
Considering flow regime and installationFlow regime plays an important role in measurement stability. In horizontal piping, transitions between laminar, turbulent, or stratified flow can cause uneven phase distribution.
Because the detector measures average density along the radiation path, significant cross-sectional variation may influence readings.
Strategic installation can minimize these effects. Vertical pipe runs often promote more uniform distribution, improving repeatability and accuracy. VEGA supports these best practices with application guidance and purpose-built mounting systems that ensure precise alignment between source and detector.
A reliable solution for demanding processesRadiometric density measurement offers a uniquely reliable and versatile solution for complex fluid systems. Its non-contact design eliminates pressure drop and contamination risk, while its immunity to harsh conditions ensures dependable long-term performance.
Modern radiometric systems combine proven physics with application-driven engineering. By understanding the measurement principle, accounting for flow conditions, and selecting the appropriate detector configuration, operators can achieve stable density control even in the most challenging industrial environments.
