BIFOLD'S CIRCUIT DESIGNER - MODULAR SOLUTIONS WITH DRAG AND DROP SYSTEM

May 18, 2018

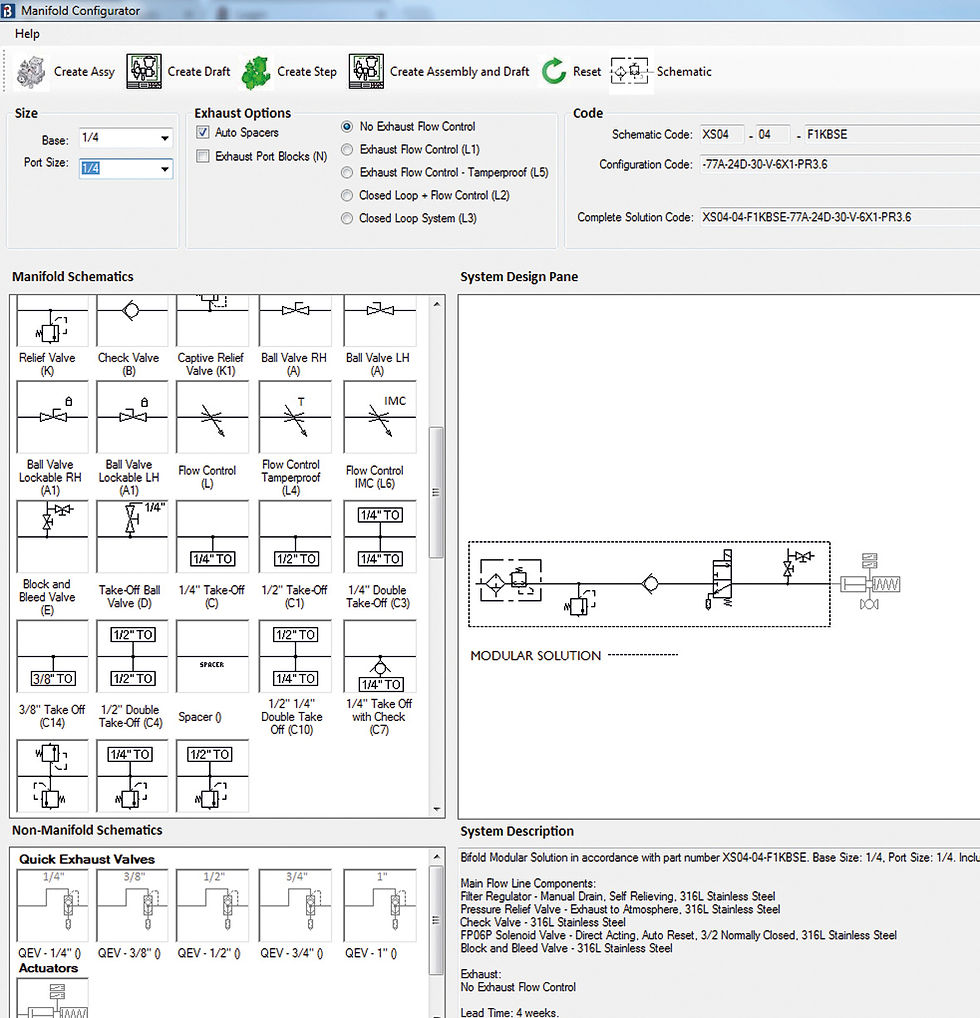

The Bifold Circuit Designer allows you to design a bespoke modular solution or tubed valve circuit comprising a series of valves in any order or orientation (where applicable) using a schematic drag and drop system. The completed system can then be bought as a modular solution or as a list of separate valves from Bifold.



  • Design a circuit using drag and drop (new schematics added regularly).


  • Organise and manage your projects in the project centre


  • View the modular solution code and description or a list of separate valves and fittings.


  • Create a PDF schematic diagram and description for sending with a quote.


  • View and print the Modular Solution Bill of Materials (BOM) or separate valves (BOM).


  • For users with Solid Edge ST6 and above, create a 3D model and dimensional drawing for Modular Solution.


  • 3,500 + systems already configured.


  •  New users configuring systems every week.



Installation

Download and run setup.exe from: - https://www.bifold.co.uk/BifoldCircuitDesigner.aspx



Further information

For more information, screenshots and Getting Started Guide, visit:

https://www.bifold.co.uk/BifoldCircuitDesigner.aspx
